2-Seater Heavy-Duty Utility Cart with Cargo Bed

Designed for high-intensity material handling, agricultural work, and facility maintenance, this 2-seater utility cart features an exceptional 1000 kg payload capacity. It is built to effortlessly tackle demanding daily transport tasks. The modular injection-molded body panels are not only highly durable and corrosion-resistant but also allow for easy, low-cost individual panel replacement, significantly reducing long-term fleet maintenance expenses. Mounted on a standardized steel chassis with deep anti-corrosion treatment, this cart guarantees maximum structural integrity and safety in harsh outdoor environments.

Key Specifications:

• Passenger Capacity: 2 Persons

• Max Payload Capacity: 1000 kg (Engineered for heavy-duty operations)

• Vehicle Curb Weight: 600 kg

• Max Speed: 27 km/h

• Cruising Range: 80 km

• Climbing Ability (Max Grade): 20%

• Powertrain: 3.5KW AC Motor with Inbor intelligent electronic control

• Battery System: 60V (12V×5) 100AH Maintenance-free lead-acid battery

• Charging Time: 8 – 10 hours (Includes high-frequency smart charger with auto-shutoff)

Chassis & Dimensions:

• Overall Dimensions (L×W×H): 3700 × 1250 × 1930 mm

• Wheelbase: 3100 mm

• Front / Rear Track: 900 / 1000 mm

• Ground Clearance: 150 mm

• Braking System: Four-wheel hydraulic drum brakes + Mechanical parking brake

• Suspension: Solid front/rear axles + Non-independent suspension

• Steering: Rack and pinion steering (Turning radius ≤ 5m)

• Tire Size: 205/50-10

Optional Upgrades (Commercial Customization):

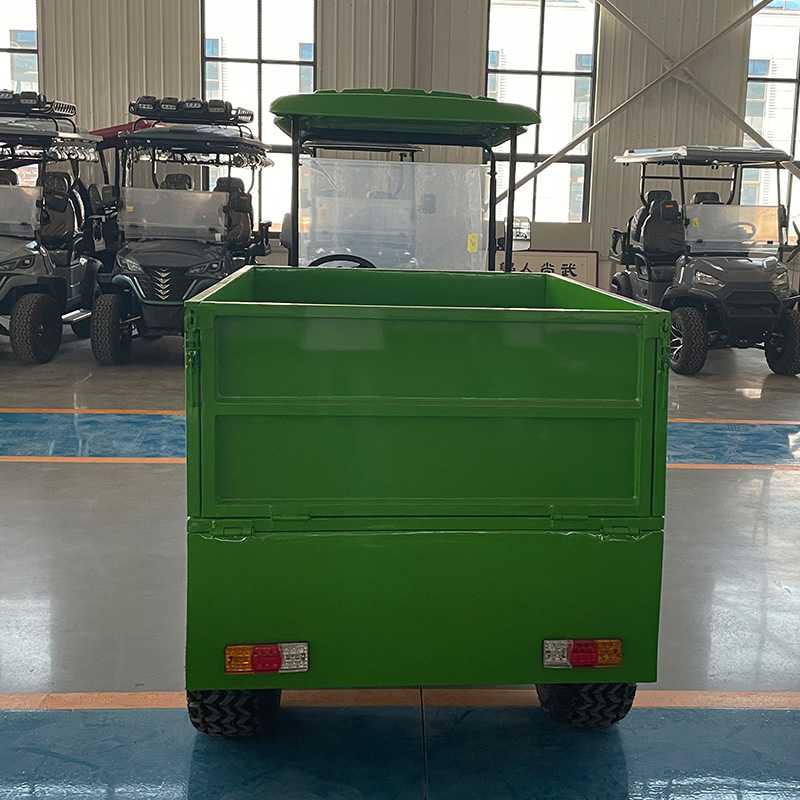

• Cargo bed enclosures (Steel frame or wooden box options available)

• Hydraulic dump bed system (Significantly improves unloading efficiency)
